This is the script.
It’s a bit simplified compared to my original version.

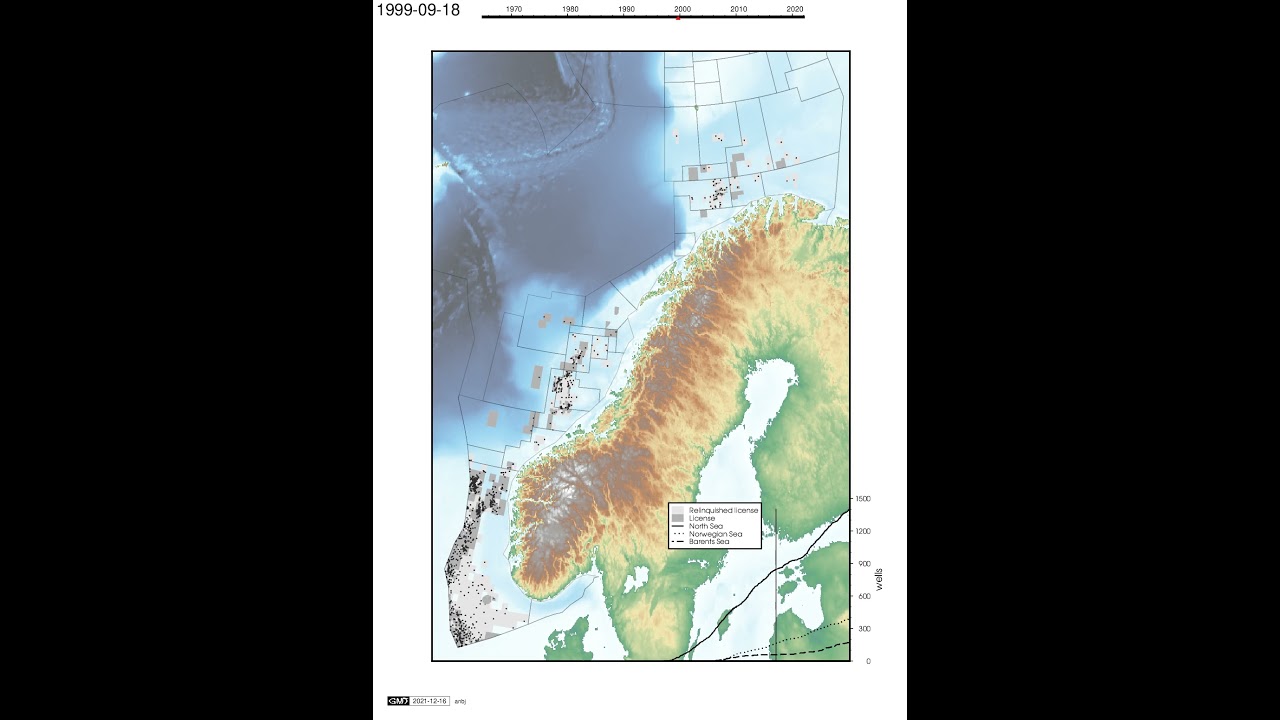

Note: If you want to test it; consider changing the dates to a smaller interval first. It takes about 7-8 hours (Intel Core i7) to complete the script with the original date span (> 20.000 frames).
- I removed the outer limit of the shelf (not straightforward downloading).
- I used well data from a CSV file. This version uses shapefiles, for simplicity (point of view…).
Note that the downloads involve ~50 megabyte. We create a geopackage of the shapefile containing well data, but it could just as well me a ‘normal’ sqlite base as we don’t use any spatial functions. We’re only dumping the contents of the completion date, long and lat columns.
# start and end date
start=1965-01-01T
stop=2022-01-01T
# create a file with all dates from $start to $stop
gmt math -o0 -T${start}/${stop}/1d T = times.txt
# download and prepare well data
wget https://factpages.npd.no/downloads/shape/wlbPoint.zip
unzip wlbPoint.zip
ogr2ogr -F GPKG wlbPoint.gpkg wlbPoint.shp
# create list of all exploration wells sorted by completion date
# this is for gmt movie
sqlite3 wlbPoint.gpkg ".separator ' '" "select ewDesDeg,nsDesDeg,CmplDate,wbName from wlbPoint WHERE well_type = 'EXPLORATION' AND CmplDate IS NOT NULL ORDER BY CmplDate ASC" > all.wells
# all wells drilled in the north sea
# this is for the small number-of-wells-plot to the lower right
sqlite3 wlbPoint.gpkg ".separator ' '" "select CmplDate,COUNT(*) OVER (ORDER BY CmplDate ROWS UNBOUNDED PRECEDING) from wlbPoint WHERE well_type = 'EXPLORATION' AND main_area = 'NORTH SEA' AND CmplDate IS NOT NULL ORDER BY CmplDate ASC" > north-sea.wells
# all wells drilled in the norwegian sea
# this is for the small number-of-wells-plot to the lower right
sqlite3 wlbPoint.gpkg ".separator ' '" "select CmplDate,COUNT(*) OVER (ORDER BY CmplDate ROWS UNBOUNDED PRECEDING) from wlbPoint WHERE well_type = 'EXPLORATION' AND main_area = 'NORWEGIAN SEA' AND CmplDate IS NOT NULL ORDER BY CmplDate ASC" > norwegian-sea.wells
# all wells drilled in the barents sea
# this is for the small number-of-wells-plot to the lower right
sqlite3 wlbPoint.gpkg ".separator ' '" "select CmplDate,COUNT(*) OVER (ORDER BY CmplDate ROWS UNBOUNDED PRECEDING) from wlbPoint WHERE well_type = 'EXPLORATION' AND main_area = 'BARENTS SEA' AND CmplDate IS NOT NULL ORDER BY CmplDate ASC" > barents-sea.wells
# download and prepare license history
wget https://factpages.npd.no/downloads/shape/prlAreaSplitByBlock.zip
unzip prlAreaSplitByBlock.zip
ogr2ogr -F GPKG prlAreaSplitByBlock.gpkg prlAreaSplitByBlock.shp
# download and prepare subAreas
wget https://factpages.npd.no/downloads/shape/subArea.zip
unzip subArea.zip
ogr2ogr -F GMT subArea.gmt subArea.shp
# clean up zip and shapefile related stuff
rm prlAreaSplitByBlock.{cpg,dbf,prj,sbn,sbx,shp,shp.xml,shx,zip} wlbPoint.{cpg,dbf,prj,sbn,sbx,shp,shp.xml,shx,zip} subArea.{cpg,dbf,prj,sbn,sbx,shp,shp.xml,shx,zip}
# main script. run for each date
cat <<eof > main.sh
gmt begin
# want minimal theme
gmt set GMT_THEME minimal
# make backdrop
gmt grdimage @earth_relief_02m -JS15/90/18c -R2/55.5/40/75r -t40
# relinquished licenses - write to file
ogr2ogr -sql "select * from prlAreaSplitByBlock where dtvalfrom <= '\${MOVIE_COL0}'" prlAreaSplitByBlock.gmt $(pwd)/prlAreaSplitByBlock.gpkg
# relinquished licenses - plot
gmt plot prlAreaSplitByBlock.gmt -Ggray90 -l"Relinquished license"+jTL
# active licenses - write to file
ogr2ogr -sql "select * from prlAreaSplitByBlock where dtvalfrom <= '\${MOVIE_COL0}' AND (dtvalto >= '\${MOVIE_COL0}' OR dtvalto IS NULL)" prlAreaSplitByBlock.gmt $(pwd)/prlAreaSplitByBlock.gpkg
# active licenses - plot
gmt plot prlAreaSplitByBlock.gmt -Ggray70 -l"License"
# plot wells that were completed on - or before - current date
gmt events all.wells -Sc0.1c -Gblack -T\${MOVIE_COL0} -Es+r2+d6 -Ms5+c0.5 -Mi1+c-0.6 -Mt+c0 --TIME_UNIT=d
# plot subareas
gmt plot subArea.gmt -Wthinner -t80
#plot timestamp with format yyyy-mm-dd and name
gmt psbasemap -B0 -U"Bubba McMudface" --FORMAT_TIME_STAMP=%F
# lower right miniplot of well count in each sea
gmt plot -Wthick,black -R1966-01-01/2022-01-01/0/1500 -JX8c/7c -l"North Sea" -X10c north-sea.wells
gmt plot -Wthick,black,. -l"Norwegian Sea" norwegian-sea.wells
gmt plot -Wthick,black,- -l"Barents Sea" barents-sea.wells
# plot moving bar that marks the current date
echo \${MOVIE_COL0} 1402 | gmt plot -Sb0.02c -Gblack
# plot frame
gmt psbasemap -Bya300f+l"wells" -BEs --FORMAT_DATE_MAP=yy
gmt end
eof
# final dimension of the image will be width x dpu and height x dpu, e.g. 1150px x 1550px for -C23cx31cx50
time gmt movie main.sh -Nncs -C23cx31cx50 -Fmp4 -Ttimes.txt -Lc0 -D182.5 --FORMAT_CLOCK_MAP=- -V -Pf+jTC+ac0 -Z # --FORMAT_DATE_MAP=yyyy
# clean up
rm times.txt main.sh *.wells
