I am using GMT6.4.0. I could successfully plot colored points according to rgb color palette.

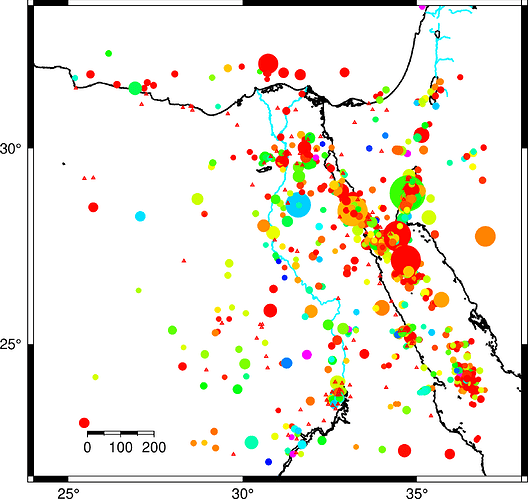

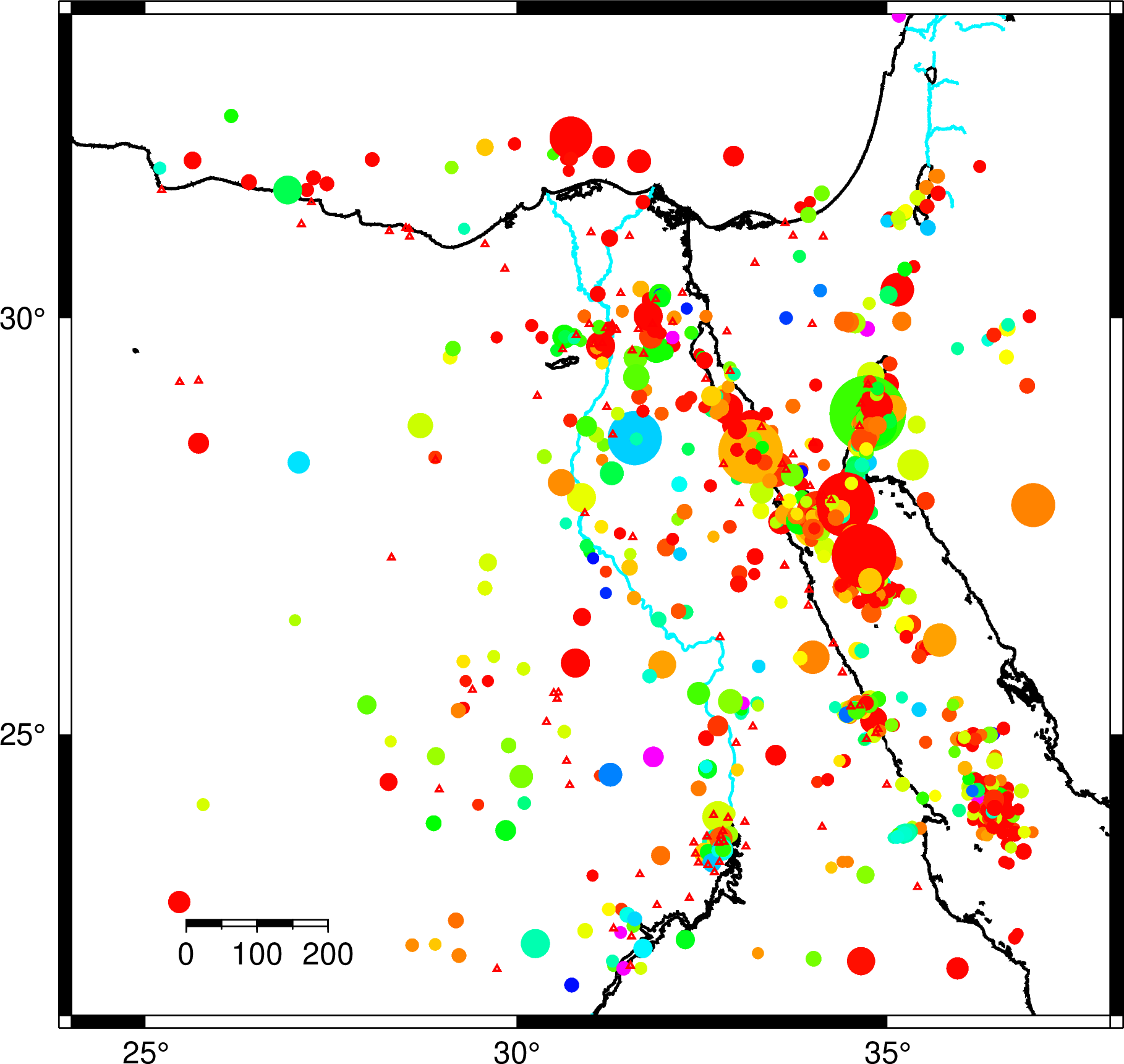

My result is below.

My problem is when I am trying to insert the color scale. The figure is corrupted.

Could you please help me? My GMT script is below.

rem xyz2grd depths.txt -Gtest.grd -R24/38/21.5/33.5 -I1m -V

surface depths.txt -Gtest.grd -R24/38/21.5/33.5 -I1m -V

grd2cpt test.grd -Crainbow -L0.0/175.2 -S0.01/1.3/0.01 -Qi -D0.0/175.2 > rgb

rem nearneighbor depths.txt -Gtest.grd -R24/38/21.5/33.5 -I1m -V -S100k

pscoast -Jm0.4i -R24/38/21.5/33.5 -Ba5f0.g0./a5f0.g0.WSen -Lf26.5/22.7/20/200 -Df -A1 -W1p -Ir/1p,turquoise1 -P -V -Swhite -K >> testmap.ps

psscale -Dx8c/1c+w12c/0.5c+jTC+h -Jm -R -Q -O -Crgb -Bx5+lDepth -By+lkm >> testmap.ps

psxy motion.txt -Jm -R -Sc -Crgb -V -O -K >> testmap.ps

psxy station.txt -Jm -R -S -V -Wthin,red -O >> testmap.ps

psconvert -Tg -P -A testmap.ps

testmap
testmap1818Ă—1721 169 KB

2

Please format your post by wrapping the code with triple backticks ```

3

The problem is that “middle commands writing to the postscript file” need both -K and -O I think, your psscale command uses only the -O

1 Like
4

This is the curse classic mode users of GMT will struggle with - not so in modern mode.

5

Thank you so much. It is really a very big help. I am deeply appreciating your time.

6

I am so sorry for any disturbance. I am not a professional in GMT. I am really struggling to get my job done.
the problem is solved finally. Thank you so much.

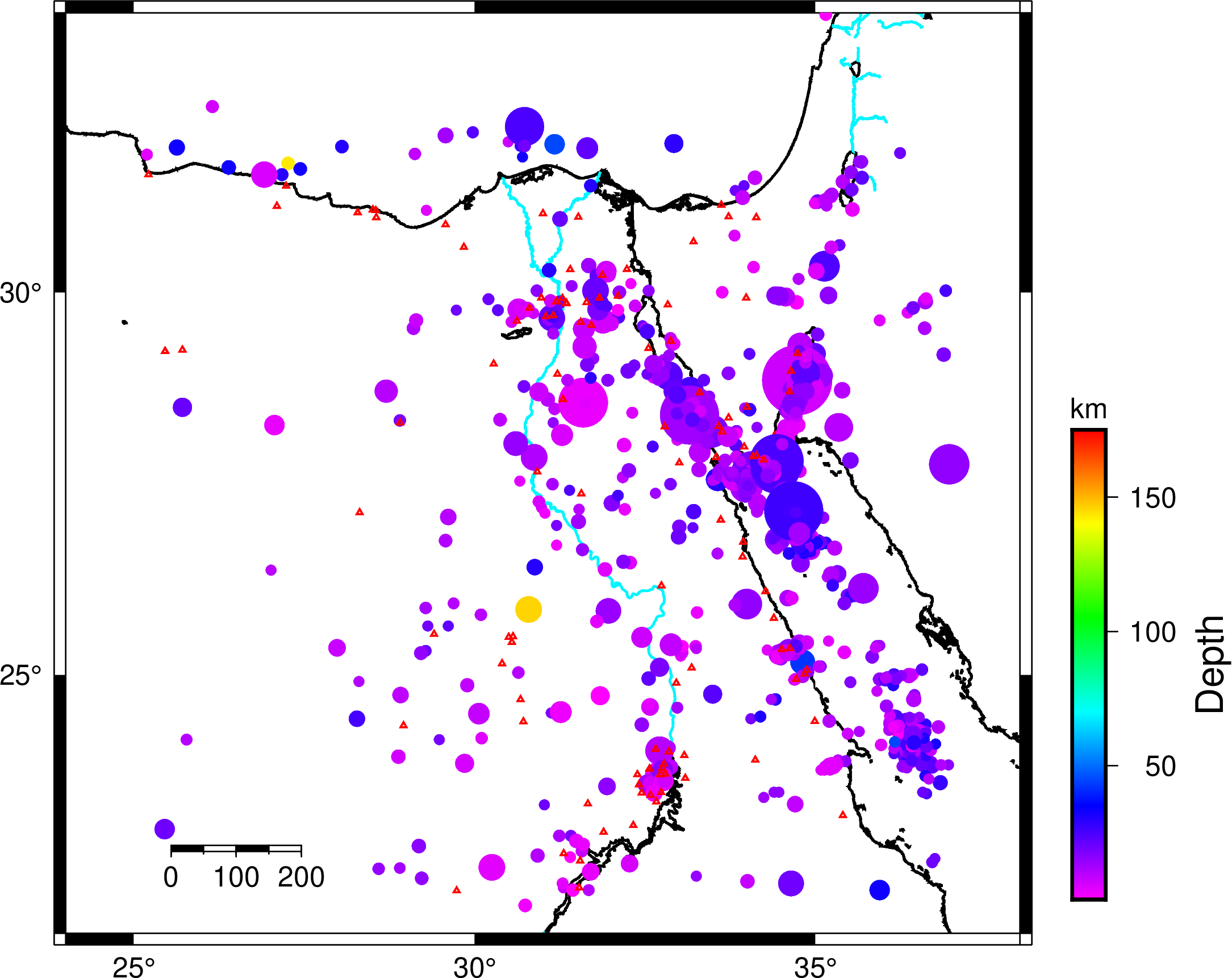

testmap
testmap2169Ă—1721 185 KB

7

No worries. Just giving hints that modern mode would be much simpler for you, with less traps like the one you fell in.
